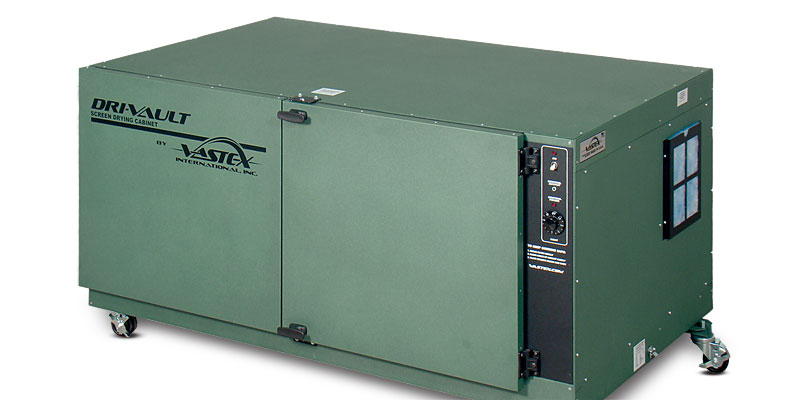

Vastex DRI-VAULT 513610

DRI-VAULT

The VDC-513610 is capable of drying (20) 25″ x 36″ screens or (10) 51″ x 36″ screens. The unique positionable center tree accommodate all these sizes and more!

RELIABLE
3 Year Warranty

HEAVY DUTY
Industrial stainless steel
finned heater

CAPACITY
Holds up to (20) 25″ x 36″
(63.6 x 91.4 cm) or up to
(10) 51″ x 36″ (129.5 x 91.4 cm)

POWERFUL
One (1) 290 CFM (8.5 CMM)
air flow blower

CONSISTENT
Pressurized cabin with positive air flow keeps out contaminants even if an air leak occurs

EFFECTIVE
Screens sit horizontal on removable shelves (angled to provide edge contact only)

FAST
Dries fully loaded cabinet
in as quickly as 40 minutes*

EFFICIENT
4″ (10 cm) exhaust duct for contaminated air removal

PRECISE
Light tight heavy duty double wall

EASY
Simple to clean or replace
filtered air intake

OPTIONS

Stainless steel shelves for rustproof drying
Digital temperature control

Read Brochure

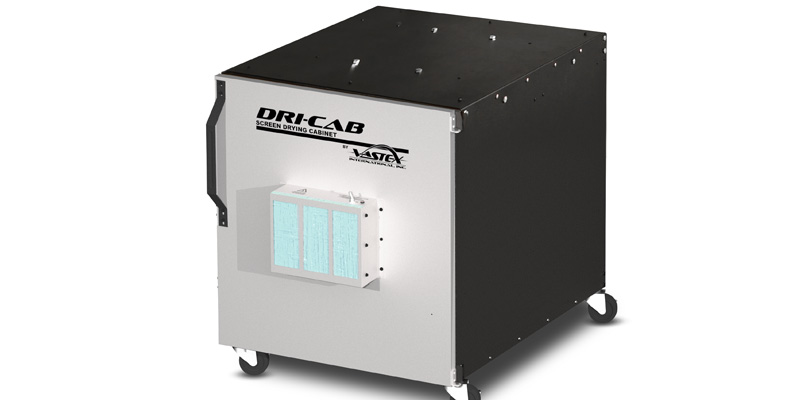

Vastex DRI-CAB

Introducing the affordable screen drying cabinet made for small shops with big needs.

FEATURES:

Dry screens in as little as an hour
Holds (10) screens up to 23″ x 31″
Light tight design and filtered air intake
Locking casters for easy mobility
3 Year Warranty
Ships via UPS (assembly required)
120v, 200v or 240v

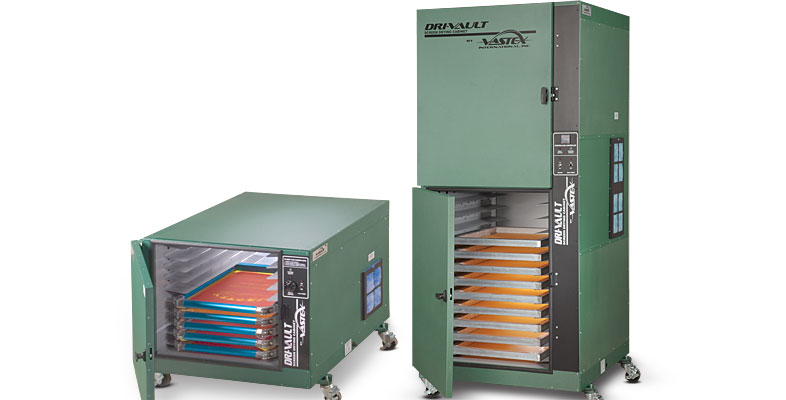

Vastex DRI-VAULT

Dry your screens securely in the 10 or 24 screen Dri-Vault. Variable heat and powerful filtered air flow can have your screens ready for exposure, in as little as 20 MINUTES**

RELIABLE
3 Year Warranty

HEAVY DUTY
Industrial stainless steel finned heater(s)

CAPACITY
Holds ten (10) or twenty four (24) 25″ x 36″ (63.6 x 91.4 cm) screens of any type

POWERFUL
One (1) 200 CFM (5.7 CMM) air flow blower or two (2) 290 CFM (14.2 CMM) air flow blowers

CONSISTENT
Pressurized cabin with positive air flow keeps out contaminants even if an air leak occurs

EFFECTIVE
Screens sit horizontal on removable shelves (angled to provide edge contact only)

SECURE
One (1) sealed latching door 10 screen or two (2) individually sealed latching doors on the 24 screen unit

CONTROL
10 screen cabinet has Hi-Low heat adjustment OR the 24 screen cabinet has breaker on/off switch, pilot light, digital temperature control, both have ability to run air only or variable heat.

FAST
Dries emulsion as quickly as 20 minutes**

EFFICIENT
4″ (10 cm) exhaust duct for contaminated air removal

PRECISE
Light tight heavy duty double wall

EASY
Simple to clean or replace filtered air intake

OPTIONS

Stainless steel shelves for rustproof drying
Casters (standard on 24 screen cabinet)
240 Volt (standard on 24 screen cabinet)
Expanded Depth for MHM style screens with pins
(24 screen cabinet)
Digital Temperature Controller for 10 screen Dri-Vaults
