Advantages

PERFORMANCE—high-speed, computer controlled printer with the latest engineering advancements
RELIABILITY—proven clamshell design for long-lasting, low-maintenance operation
FLEXIBILITY—accommodates wide range of sizes and substrates up to one inch thick
CONVENIENCE—up-front control panel with touch screen settings in easy reach of the operator
CONSISTENCY—tightest registration tolerances for guaranteed repeatable results with five lock-in points
SAFETY—wraparound safety bar with four-point micro switch activation protects operator—safest in industry
SERVICE—onboard remote diagnostics system provides instant access to worldwide service

Standard Features

Up-front Stroke Length Setting: Patented push-button feature enables quick tool-free adjustment.

Advanced Ink Recovery: Captures unused ink without changing stroke length

Front or Rear Carriage Stop Mode: Easy operator adjustment for running solvent or UV ink

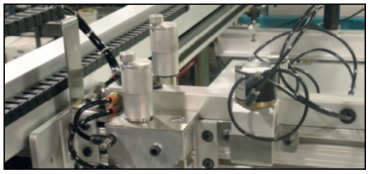

SqueegelizerTM Pneumatic Chopper Assembly: Tool-free squeegee and floodbar adjustments evenly distribute squeegee pressure (Figure 2)

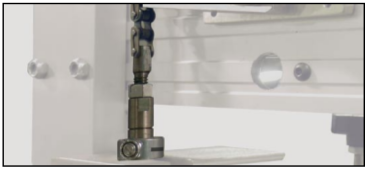

Four-Point Off-Contact Control: Turnbuckle adjustments for quick and accurate off-contact settings. Zero off-contact capable for use with high-tensioned screens (Figure 4)

Five point Masterframe Lock-In: Positive head lock with “V” fork / ball- bearing system ensures repeatable registration to within + .002

Tool-free peel rate setting: Up-front adjustment allows quick manual changes in peel-rate

Heavy-duty, ball- bearing belt drive print carriage: Quiet and extremely reliable drive system for smoothest stroke

Independent Carriage and Head Lift Drives: Independent AC drives for smooth cycling and minimum vibration

Stay-FlatTM All- Aluminum Vacuum Table: A flat, stable surface with adjustable holddown and blowback system

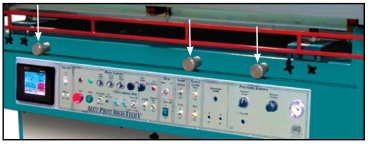

Improved Micro-Registration System: New three-point bearing controlled system for quick and exact final image placement – no need to remove frame (Figure 3)

Remote Diagnostics System: Onboard microprocessor/modem (Figure 7) helps eliminate expensive on-site service calls by providing instant access to worldwide service with free, unlimited first-year usage

Independent Squeegee/Floodbar Speed and Angle adjustments: For challenging print jobs where total control of these variables is needed.

Interactive Diagnostics and Production Interface: (Figure 10) Allows easy monitoring of job quantities and other important press data including sheets fed, sheets missed, error messages and other troubleshooting codes.

A.W.T. World Trade Inc. makes sure the Accu-Print High-Tech VTMstands apart from other printers in its class by including a host of standard features which other manufacturers offer only as options.

A patented up-front, computer controlled stroke length adjustment makes for quick setup, and the press’ independent carriage and head lift drives ensure vibration free cycling. The High-Tech V’s lock-in masterframe works with an improved micro-registration system to quickly position your image exactly where needed.

The High-Tech V is built on a rock-solid tubular steel chassis and backed by A.W.T.’s Remote Diagnostics System with worldwide access to technical support.
