Vastex AirFlash

ADJUSTABLE FORCED AIR SYSTEM PROTECTS DELICATE TEXTILES DURING INFRARED FLASH-CURING OF PLASTISOL INKS, SPEEDS THE EVAPORATIVE DRYING OF WATER BASED INKS, AND COOLS THE ENCLOSURE FOR OPERATOR SAFETY

The new Air-Flash^TMCure Station from Vastex combines infrared heating with forced air to heat the ink while cooling the garment.

This prevents the high heat needed to melt plastisol inks from melting, shrinking or burning nylon, polyester, Dazzle cloth, Spandex and other heat-sensitive fabrics.

With water-based inks that require moisture removal for drying, the flow of forced air across the infrared-heated ink accelerates evaporation, significantly reducing the time and energy needed to flash-dry each garment.

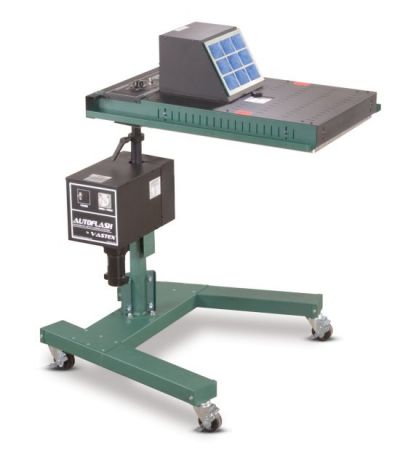

Shown with optional AutoFlash upgrade for automatic head swing with gear motor, foot pedal and automatic timer, and optional Super Heavy Duty Stand (SHHD)

Vastex and Redflash and E-Flash

STANDARD FEATURES:

Adjustable Heat Control
Casters Included
15 Year Heater Warranty
3 Year Bumper to Bumper Warranty
Head rotates 360°
18″ x 18″ or 18″ x 24″ models available
User friendly diagnostic pilot lights
Convenient heavy-duty side handles
Low profile 2 3/4″ head height
Adjustable height
240 volt models available
Low cost maintenance
Vented heat shield
Anti-rust treatment on all painted steel
Flash plastisol in 7-10 seconds

MODELS AVAILABLE:
R-18-240: 18 x 18″; 240V; 2600 Watt
R-18-240-HO: 18 x 18″; 240V; 3500 Watt
R-1824-240: 18 x 24″; 240V; 3500 Watt
AutoFlash automatic head swing
