ROQ SAHARA

The ROQ SAHARA – It’s like having a desert at your service

TECHNICAL SPECS

•Improved energy efficiency and thermal stability through its reinforced insulation
Standby Mode that allows you to keep your dryer’s temperature during breaks at a reduced cost, further improving its energy efficiency
Increased chamber entry height of 140 mm (5,5’)
Improved noise reduction
Axial flow fan for a constant hot-air circulation
Air purification filter for the burner
Antistatic and resistant mesh conveyor high tensile strength PTFE coated belt
Faster and easier maintenance due to an improved filter access
Updated user-friendly software with a brand-new recipe saving system to manage exposure time and overall temperature
Digital temperature display
Internal exhaustion header system per module
Contact temperature control
Min temp 90°C – Max temp 200°C
Option of 2 conveyors with independent speed and direction (optional)
Different length’s entry/exit openings (optional)
ROQ SAHARA powered by gas with heat exchanger system (optional)
ROQ SAHARA powered by gas, Electricity, or Both (optional)

Description

The ROQ SAHARA is a very versatile piece of equipment, able to adapt to any printing shop regardless of the conditions or type of energy source available. It can run on gas, electricity or both (MIX version), switching between them with the simple press of a button.

This oven has high energy efficiency and thermal stability, thus bringing added value to your business.

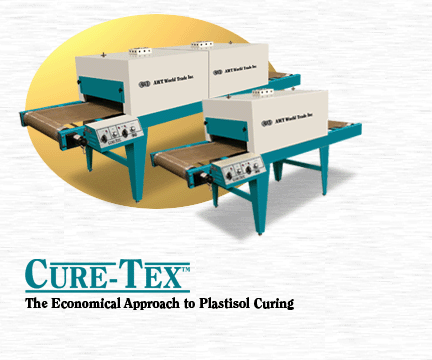

AWT Cure-Tex

TEXTILE DRYER

A Better Solution For Low Cost Plastisol Curing

Top contender in the economy class, the Cure-Tex is a serious textile dryer, engineered with the same quality components as larger infra-red units. Designed for maximum production speeds, the Cure-Tex combines solid state temperature controls and heavy duty chamber insulation to deliver heat efficiently to the garment and minimize energy consumption. Top-down air flow pattern distributes heat evenly and prevents scorching. The full control panel provides upfront settings for temperature and conveyor speed, while heat panel height is easily adjusted without tools. A Fiberlon™ belt ensures long belt life and easy tracking. Built to last, the Cure-Tex dryer is designed for easy access to all components.

Available with cap curing unit as original equipment or retrofit.

PLASTISOL CURING UP TO 12 DOZEN GARMENTS PER HOUR OR 20 DOZEN CAPS PER HOUR

DIMENSIONS & SPECIFICATIONS

Infeed: 24″ (61cm)
Outfeed: 24″ (61cm)
Assembled Size: 84L x 39W x 51W” (213x99x130cm)
Shipping Weight: 350 Ibs. (158kg)

The Cure-Tex top-down air circulation system distributes heat evenly, for faster drying speeds and maximum energy utilization.

Cure-Tex Standard Features

Solid state temperature controls
Heavy duty chamber insulation
Variable speed conveyor drive
Forced air system for even heat distribution
Adjustable radiant heat panel height
Quality Fiberlon™ conveyor belt
Adjustable chamber aperature doors conserve heat
Cure-Tex Options
Solid state digital temperature readout Cap curing panel

AWT Super Turbo G

The Super Turbo G™ is A.W.T.’s gas dryer designed for efficient textile industrial production. All plastisol and water based textile inks are cure-dried in the Super Turbo G at speeds up to 110 dozen pieces per hour – or more.

The design of this dryer includes a preheat chamber where the correct curing temperature of inks is quickly obtained. The preheat system can be gas fired (GHO models) for energy efficient production. The Super Turbo GHO has a quartz tube preheat zone. Heights of the preheat system inside the chamber are adjustable.

The second section uses jet air-knives and high volume hot air to fully cure the textile ink while removing evaporates through the exhaust system. Re-circulating hoods re-circulate up to 90% of the dry airflow through the system. This helps to reduce your energy consumption. Dye fumes from colored shirts are safely exhausted. The Super Turbo G and GHO dryers keep textile production running smoothly and efficiently. Ink is fully cured with excellent results.

Double insulated chambers allow air temperature to remain constant. This feature makes the dryer energy efficient with little heat loss.

Temperatures for the quartz tubes/preheat zone can be set independently of the jet air. If air flow becomes restricted the heating system shuts down automatically and a safety alarm sounds. This safety feature keeps the blowers operating, preventing problems from scorching and blower burnout. Unit has full filter system.

The fully modular construction makes expansion easy by simply adding heating or conveyor sections.

Two sections of heat: quartz tubes (preheat) and hot jet air knives; fast, cost effective and reliable
Solid-state, independent temperature controls for heat zones
Remote diagnostics for immediate servicing to reduce downtime
Heavy-duty chamber insulation keeps exterior of dryer cool
Variable speed conveyor drive with solid-state controls
Adjustable quartz tube height accommodates textiles of various thicknesses and curing times
Quality Fiberlon™ conveyor belt guaranteed up to 500°F (260°C)
High temperature adjustable chamber aperture doors conserve heat and allow easy access to the inside of dryer
Easy to use control panel provides visual display of all heating operations
Air filters are easy to access for cleaning or changing
Gas burner and system is easily accessible for maintenance and cleaning
Changeable air flow recirculation to fit your venting requirements with up to 90% recirculation
Digital belt speed readout
Low gas, power consumption
Easy belt tracking
Heat uniformity and stability throughout
